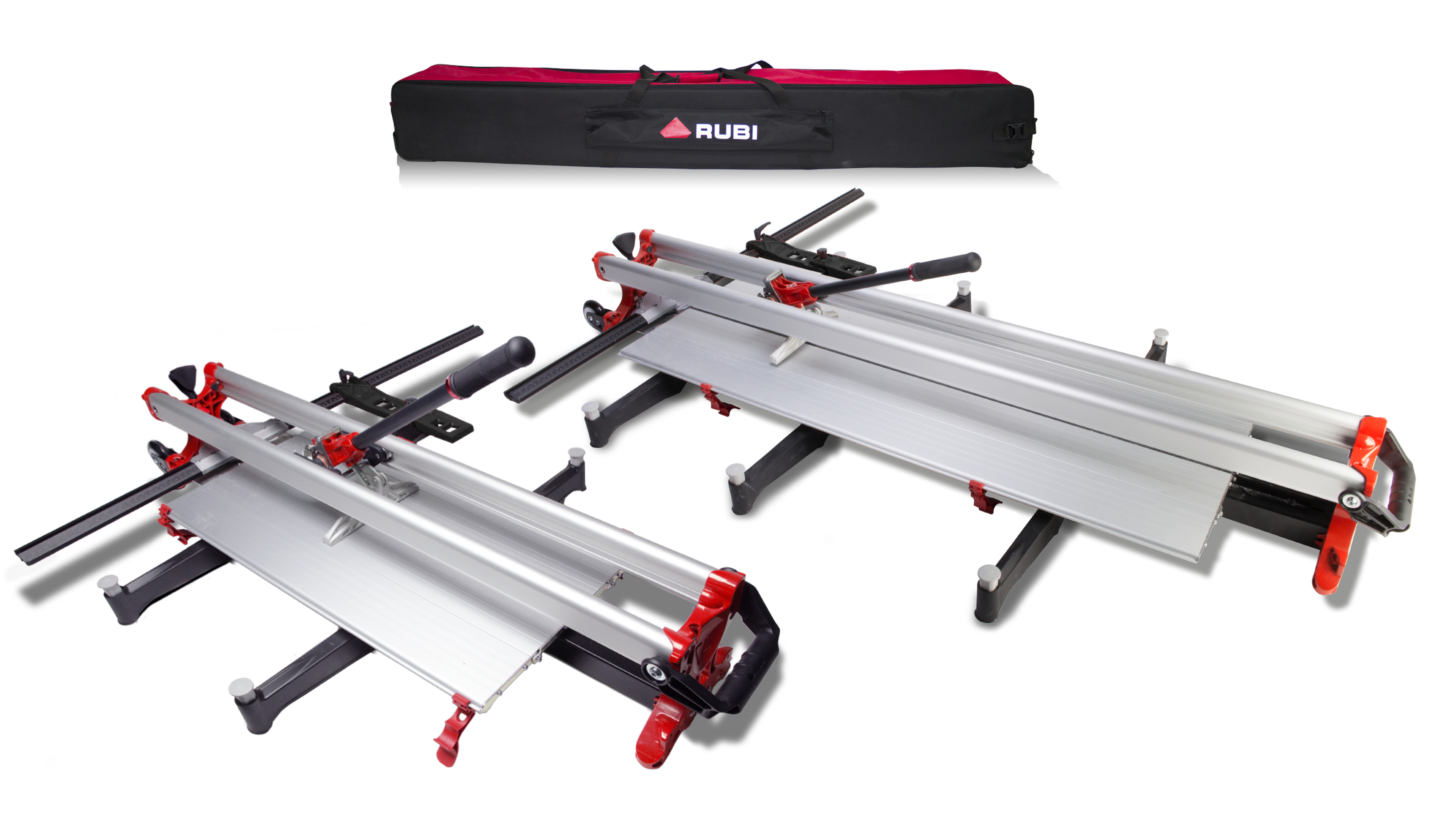

Rubi Tools TZ-1550 Heavy Duty Tile Cutter With Bag 61"

TZ manual cutters are PURE POWER. Their 3306 lbs of maximum power and their exclusive and patented breaker mechanism allow the professional tiler to operate the cutter with one hand, thus facilitating the work with large format ceramic tile. TZ manual cutters are specifically designed to work with large format tiles. Its large cutting capacity and maximum power of 3306 lbs allow you to cut pieces up to 53/64" of thickness*, with the ability to adjust the working position and the machine performance according to the thickness of the material. The swivel square with removable ends and the locking system ensure precise cuts and facilitate the performance of angular cuts. The patented 12" long lateral stop offers a large surface for performing repetitive cuts in large pieces. TZ manual cutters are also equipped with wheels and carrying handles to facilitate their portability in the workplace and a highly strengthened textile bag to transport and protect it. TZ manual cutters are compatible with the full range of RUBI PLUS scoring wheels and are supplied with a 5/16" and a 3/4" diameter scoring wheel. *There are some ceramic materials wirth a thicknes over 9/16" which due to their physical properties, possible inner or surface tensions, might be difficult to cut manually. It is highly recommended to make some sample cuts to determine the suitability of the product.RUB17958-mainRUB17958-Image2RUB17958-Image3RUB17958-Image19RUB17958-Image5RUB17958-Image6
Enlarge
RUB17958-main
RUB17958-Image2
RUB17958-Image3
RUB17958-Image19
RUB17958-Image5
RUB17958-Image6

Description:

TZ manual cutters are PURE POWER. Their 3306 lbs of maximum power and their exclusive and patented breaker mechanism allow the professional tiler to operate the cutter with one hand, thus facilitating the work with large format ceramic tile. TZ manual cutters are specifically designed to work with large format tiles. Its large cutting capacity and maximum power of 3306 lbs allow you to cut pieces up to 53/64" of thickness*, with the ability to adjust the working position and the machine performance according to the thickness of the material.

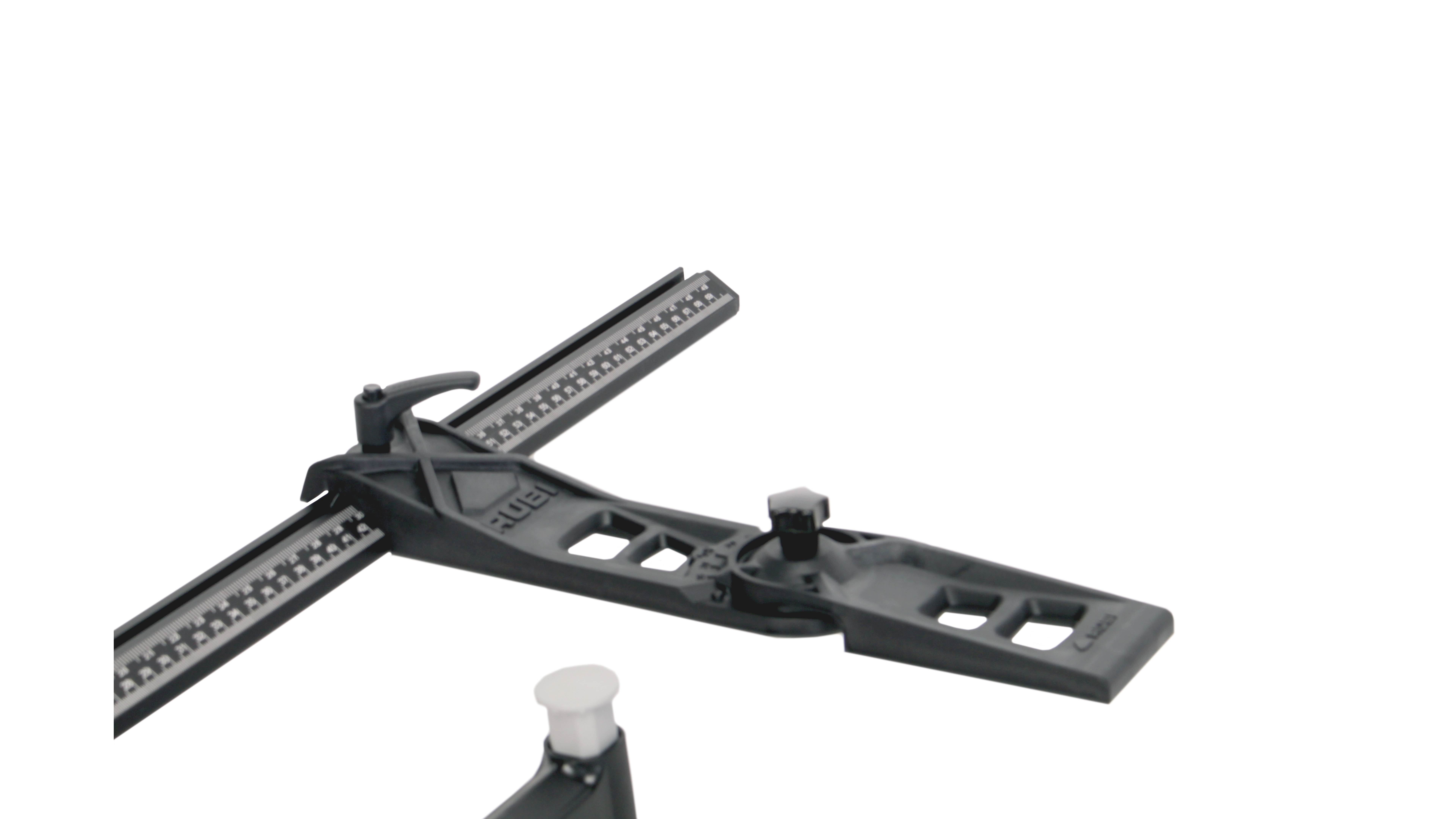

The swivel square with removable ends and the locking system ensure precise cuts and facilitate the performance of angular cuts. The patented 12" long lateral stop offers a large surface for performing repetitive cuts in large pieces. TZ manual cutters are also equipped with wheels and carrying handles to facilitate their portability in the workplace and a highly strengthened textile bag to transport and protect it.

TZ manual cutters are compatible with the full range of RUBI PLUS scoring wheels and are supplied with a 5/16" and a 3/4" diameter scoring wheel.

*There are some ceramic materials wirth a thicknes over 9/16" which due to their physical properties, possible inner or surface tensions, might be difficult to cut manually. It is highly recommended to make some sample cuts to determine the suitability of the product.

  • Item #:

    17958

  • UOM:Each
  • Availability:Login for Availability
Ask Question Tell a Friend

Sell Sheet
Manual
Parts Schematic V.04-Serial Num 1043 or more

Specifications:

Ref. - 17958
EAN-13 - 8413797179583
Cutting length - 61.02"
Diagonal cutting length - 43.3 x 43.3 inch
Cutting height - 0.11-0.82"
Separator power - 3307 lbs
With carrying case - YES

Features:

- Smoother and more precise head movement.
- Large cutting capacity, up to 21 mm thickness. Ideal for large formats*.
- Robust and foldable structure for greater strength and ease of transportation.
- Powerful separator (up to 3,300 lbs.), operable with one hand.
- For the intensive cutting of all types of ceramic tiles.
- Excellent performance breaking system: Clean cuts with soft motion.
- Includes Ø 0.31" (8mm) and 0.7" (18 mm) scoring wheels. Reinforced textile bag for transport and protection.
- Robust chassis, guides and breaking system.
- Swivel bracket with central pivot for fast and accurate measurement of angular cuts.
- Adjustable lateral stop for repetitive cuts.
- Base supplement for excellent ceramic support.
- Easy to transport: rubber wheels with bearings and handle.
- Interchangeable scoring wheels ranging from Ø 5/16"(8mm) to Ø7/8" (22mm).

Documentation:

No documents available.

Specifications:

Ref. - 17958
EAN-13 - 8413797179583
Cutting length - 61.02"
Diagonal cutting length - 43.3 x 43.3 inch
Cutting height - 0.11-0.82"
Separator power - 3307 lbs
With carrying case - YES

Features:

- Smoother and more precise head movement.
- Large cutting capacity, up to 21 mm thickness. Ideal for large formats*.
- Robust and foldable structure for greater strength and ease of transportation.
- Powerful separator (up to 3,300 lbs.), operable with one hand.
- For the intensive cutting of all types of ceramic tiles.
- Excellent performance breaking system: Clean cuts with soft motion.
- Includes Ø 0.31" (8mm) and 0.7" (18 mm) scoring wheels. Reinforced textile bag for transport and protection.
- Robust chassis, guides and breaking system.
- Swivel bracket with central pivot for fast and accurate measurement of angular cuts.
- Adjustable lateral stop for repetitive cuts.
- Base supplement for excellent ceramic support.
- Easy to transport: rubber wheels with bearings and handle.
- Interchangeable scoring wheels ranging from Ø 5/16"(8mm) to Ø7/8" (22mm).
